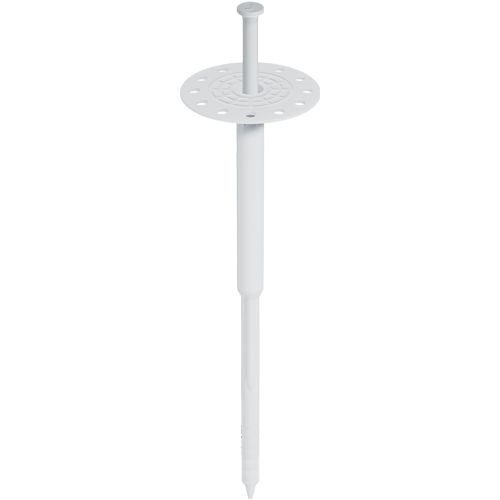

EJOT® H1 eco

Specification

  • Applications

    Universal hammer-in anchor

    • Approved for all material classes (A, B, C, D, E)
    • For all insulation boards
    • For surface fixed installation
    • With European Technical Assessment (ETA)
  • Properties

    • Approved for concrete, solid and perforated masonry
    • Solid steel nail (break-proof)
    • Low profile washer face
    • Plastic injection element to reduce thermal transmission (0,001 W/K)
    • Can be used with an additional spreader washer
    • KShort embedment depth, reduced drilling
    • High loads for your security
    • Economic anchor usage
    • Premounted nail for quick installation
  • Technical specifications

    • Anchor diameter: 8 mm
    • Washer diameter: 60 mm
    • Drill hole depth h1 ≥: 35 mm
    • Embedment depth hef≥: 25 mm
    • Point thermal transmission χ: 0.001 W/K
    • Use categories acc. to ETA: A, B, C
    • European Technical Assessment: ETA-11/0192
      • Normal weight concrete C 12/15 acc. to EN 206-1: 0.9 kN
      • Normal weight concrete C 16/20 - C 50/60 acc. to EN 206-1: 0.9 kN
      • Clay bricks (Mz) acc. to DIN 105: 0.9 kN
      • Solid lime sandstone (KS) acc. to DIN EN 106: 0.9 kN
      • Vertically perforated clay brick (Hlz) acc. to DIN 105, bulk density ≥ 1.2 kg/dm3: 0.75 kN
      • Vertically perforated clay brick (Hlz) acc. to DIN 105, bulk density ≥ 0.9 kg/dm3: 0.6 kN
      • Sand-lime perforated (KSL) acc. to DIN EN 106: 0.9 kN

    •

      Characteristic loads:

      Building material class A:

      Building material class B:

      Building material class C:

      For calculation of design loads the national safety factors have to be included (e.g. Germany: 3). Please observe the approval.

Find the right anchor lengths: ETICS anchor configurator
ETICS products are only available from system suppliers

Filter

Selected filters

    Orderidentifier Article Number Washer diameter mm Anchor diameter mm Length mm Construction way Unit
    EJOT H1 eco 095 8746095400 60.0 8.0 95.0 surface fixed installation only 100
