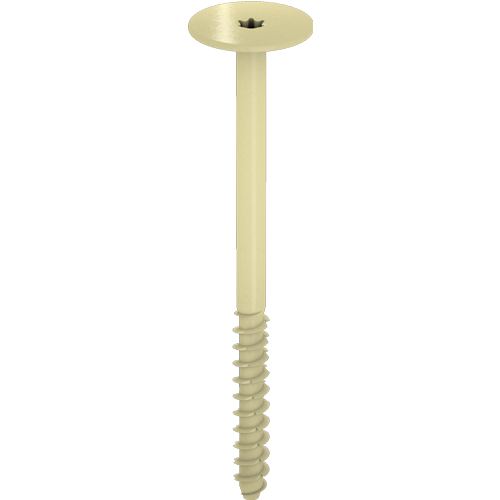

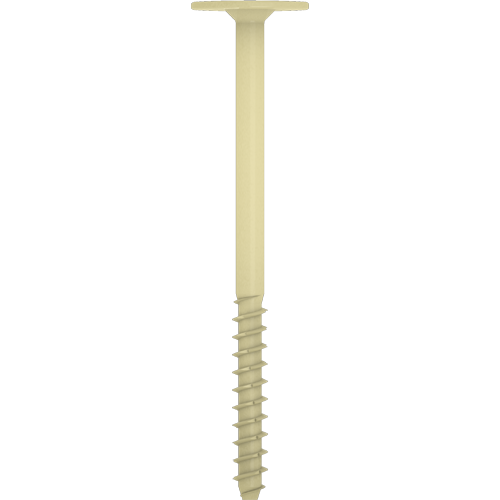

EJOT® DDS-ZB

Specification

  • Applications

    • For a secure fastening of ceiling and acoustic boards
    • With German DIBt approval
    • Recommended substrate: Concrete
  • Properties

    • For installation in cracked and non-cracked concrete
    • Steel screw with duplex coating and self-tapping thread for reliable fastening
    • Corrosion resistance classification C1-C3
    • Easy installation: drill, fasten, done
    • Minimal embedment depth
    • Standard screw head colour: beige
  • Technical specifications

    • Head diameter: 24 mm
    • Drill hole diameter: 6 mm
    • Drill hole depth h1 ≥: 35mm
    • Embedment depth hef ≥: 25 mm
    • Screw drive: TX30
    • Recommended substrate: Concrete
    • Building material class: A2
    • Corrosion resistance classification: C1 - C3
    • DIBt approval: Z-21.8-1980


    Characteristic load:

    • Cracked and uncracked normal weight concrete C 20/25 - C 50/60 NRK<7sub>: 0.9 kN


    *For further technical specification, please refer to the relevant technical data sheet.

Filter

Selected filters

    Orderidentifier Article Number Construction way Screw-in-/hammer-inanchor Head Colour Embedment depth hef Unit
    EJOT DDS-ZB 050 5929050691 surface fixed installation only screw-in-anchor 25.0

    Specifications

    Construction way
    surface fixed installation only
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Head Colour
    RAL1015
    Embedment depth hef
    25.0
    Drill hole depth
    35.0
    Orderidentifier
    EJOT DDS-ZB 050
    Unit
    EJOT DDS-ZB 060 5929060691 surface fixed installation only screw-in-anchor 25.0

    Specifications

    Construction way
    surface fixed installation only
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Head Colour
    RAL1015
    Embedment depth hef
    25.0
    Drill hole depth
    35.0
    Orderidentifier
    EJOT DDS-ZB 060
    Unit
    EJOT DDS-ZB 075 5929075691 surface fixed installation only screw-in-anchor 25.0

    Specifications

    Construction way
    surface fixed installation only
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Head Colour
    RAL1015
    Embedment depth hef
    25.0
    Drill hole depth
    35.0
    Orderidentifier
    EJOT DDS-ZB 075
    Unit
    EJOT DDS-ZB 085 5929085691 surface fixed installation only screw-in-anchor 25.0

    Specifications

    Construction way
    surface fixed installation only
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Head Colour
    RAL1015
    Embedment depth hef
    25.0
    Drill hole depth
    35.0
    Orderidentifier
    EJOT DDS-ZB 085
    Unit
    EJOT DDS-ZB 100 5929100691 surface fixed installation only screw-in-anchor 25.0

    Specifications

    Construction way
    surface fixed installation only
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Head Colour
    RAL1015
    Embedment depth hef
    25.0
    Drill hole depth
    35.0
    Orderidentifier
    EJOT DDS-ZB 100
    Unit
    EJOT DDS-ZB 110 5929110691 surface fixed installation only screw-in-anchor 25.0

    Specifications

    Construction way
    surface fixed installation only
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Head Colour
    RAL1015
    Embedment depth hef
    25.0
    Drill hole depth
    35.0
    Orderidentifier
    EJOT DDS-ZB 110
    Unit
    EJOT DDS-ZB 125 5929125691 surface fixed installation only screw-in-anchor 25.0

    Specifications

    Construction way
    surface fixed installation only
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Head Colour
    RAL1015
    Embedment depth hef
    25.0
    Drill hole depth
    35.0
    Orderidentifier
    EJOT DDS-ZB 125
    Unit
    EJOT DDS-ZB 135 5929135691 surface fixed installation only screw-in-anchor 25.0

    Specifications

    Construction way
    surface fixed installation only
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Head Colour
    RAL1015
    Embedment depth hef
    25.0
    Drill hole depth
    35.0
    Orderidentifier
    EJOT DDS-ZB 135
    Unit
    EJOT DDS-ZB 150 5929150691 surface fixed installation only screw-in-anchor 25.0

    Specifications

    Construction way
    surface fixed installation only
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Head Colour
    RAL1015
    Embedment depth hef
    25.0
    Drill hole depth
    35.0
    Orderidentifier
    EJOT DDS-ZB 150
    Unit
    EJOT DDS-ZB 165 5929165691 surface fixed installation only screw-in-anchor 25.0

    Specifications

    Construction way
    surface fixed installation only
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Head Colour
    RAL1015
    Embedment depth hef
    25.0
    Drill hole depth
    35.0
    Orderidentifier
    EJOT DDS-ZB 165
    Unit
