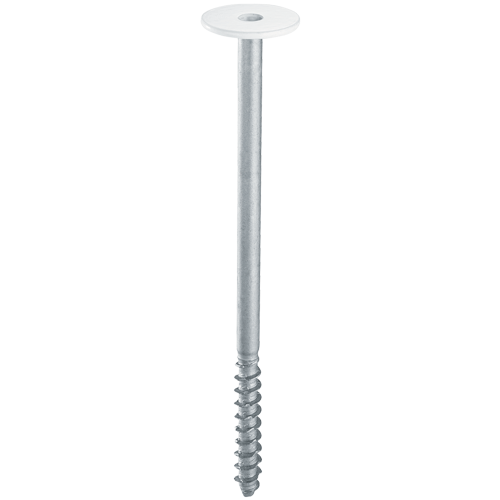

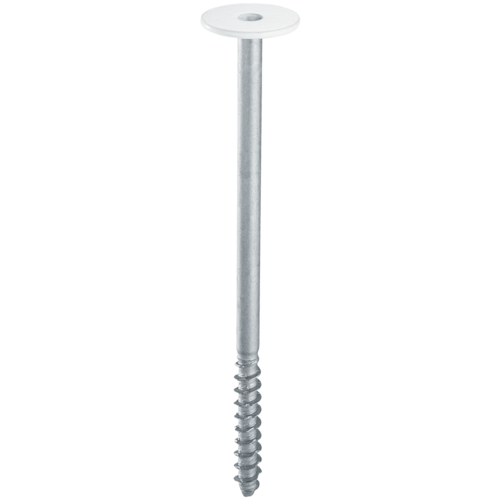

EJOT® DDS-Z
Specification
-
Applications
- For a secure fastening of ceiling and acoustic boards
- With German DIBt approval
- Recommended substrate: Concrete
-
Properties
- For installation in cracked and non-cracked concrete
- Steel screw with duplex coating and self-tapping thread for reliable fastening
- Corrosion resistance classification C1-C3
- Easy installation: drill, fasten, done
- Minimal embedment depth
- Standard screw head colour: white
- Special service: coloured lacquering of the fastener heads
-
Technical specifications
- Head diameter: 24 mm
- Drill hole diameter: 6 mm
- Drill hole depth h1 ≥: 35mm
- Embedment depth hef ≥: 25 mm
- Screw drive: TX30
- Recommended substrate: Concrete
- Building material class: A2
- Corrosion resistance classification: C1 - C3
- DIBt approval: Z-21.8-1980
Characteristic load:- Cracked and uncracked normal weight concrete C 20/25 - C 50/60 NRK<7sub>: 0.9 kN
*For further technical specification, please refer to the relevant technical data sheet.
ETICS products are only available from system suppliers
Filter
Selected filters
| Orderidentifier | Article Number | Construction way | Screw-in-/hammer-inanchor | Head Colour | Embedment depth hef≥ | Drill hole depth | Unit |
|---|---|---|---|---|---|---|---|
| EJOT DDS-Z 050 | 5929050682 | surface fixed installation only | screw-in-anchor | 25.0 | 35.0 | 100 | |
Specifications
|
|||||||
| EJOT DDS-Z 125 | 5929125682 | surface fixed installation only | screw-in-anchor | 25.0 | 35.0 | 100 | |
Specifications
|
