Iso-Bar ECO

Specification

  • Applications

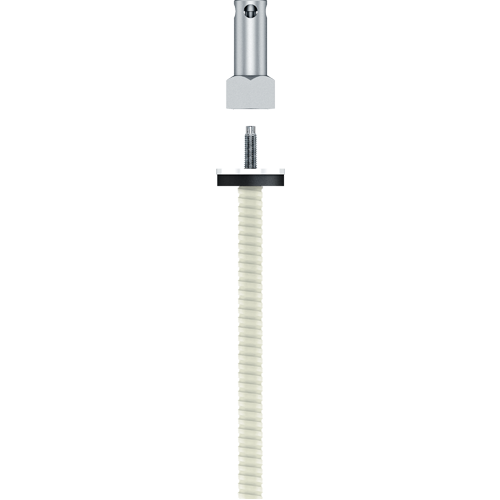

    The EJOT Iso-Bar ECO is a thermally separated fastening element for subsequent and therefore flexible fastening on thermally insulated facades. The reinforced glass fibre plastic provides minimal thermal bridge effect. This way, unnecessary heat losses can be avoided.

    It is installed using injection mortar and it can be fixed into concrete as well as into solid and perforated brick and aerated concrete, and can transfer high loads. The possibility of cutting to length on site to suit the insulation thickness enables the realisation of a lean product range.

  • Properties

    • Flexible rope attachment through adapter
    • Variable rope designs / grid geometries
    • Permanent seal against moisture through high-quality seal (BG1 according to DIN 18542)
    • Low classified thermal bridge effect
    • Subsequent, flexible installation
    • Can be cut to length on site to suit the local side conditions
    • Small product variety for insulation thicknesses up to 300 mm
    • Easy and safe installation with innovative assembly tools
    • Expansion-pressure free installation in the substrate
    • Can also be used at temperatures down to -20 ° C in combination with Multifix USF Winter mortar
    • Weather and UV-resistant

    Included in delivery

    • EJOT Iso-Bar 200/260/320/380
    • Washer Ø 60 mm with seal Ø 58 mm
    • Adapter incl. cylinder screw
    • Assembly tool
    • Perforated sleeve (for use in perforated masonry-brickwork)
    • Mixing nozzle expansio
  • Technical specifications

    Characteristic values

    Approval (DIBT Germany) Z-21.8-2083
    Nominal diameter [rod]: 22 mm
    Diameter [washer]: 60 mm
    Diameter [seal]: 58 mm

    Lengths and effective lengths

    Iso-Bar ECO max. effective Length*
    concrete / masonry
    Iso-Bar ECO 200 160 / 120 mm
    Iso-Bar ECO 260 220 / 180 mm
    Iso-Bar ECO 320 280 / 240 mm
    Iso-Bar ECO 380 340 / 300 mm
    * max. effective Length = Thickness of non-bearing layers, e.g. glue, rendering, reinfrocing material, insulating material, etc.



Filter

Selected filters

    Orderidentifier Article Number Length mm Unit
    SET EJOT Iso-Bar ECO 200 8779200110 200.0 1

    Specifications

    Length
    200.0
    Orderidentifier
    SET EJOT Iso-Bar ECO 200
    Unit
    1
    SET EJOT Iso-Bar ECO 260 8779260110 260.0 1

    Specifications

    Length
    260.0
    Orderidentifier
    SET EJOT Iso-Bar ECO 260
    Unit
    1
    SET EJOT Iso-Bar ECO 320 8779320110 320.0 1

    Specifications

    Length
    320.0
    Orderidentifier
    SET EJOT Iso-Bar ECO 320
    Unit
    1
    SET EJOT Iso-Bar ECO 380 8779380110 380.0 1

    Specifications

    Length
    380.0
    Orderidentifier
    SET EJOT Iso-Bar ECO 380
    Unit
    1
    Iso-Bar ECO rope cross 90° plastic 8779888002 1

    Specifications

    Length
    Orderidentifier
    Iso-Bar ECO rope cross 90° plastic
    Unit
    1
    Iso-Bar ECO climbing rung - plastic 8779888004 1

    Specifications

    Length
    Orderidentifier
    Iso-Bar ECO climbing rung - plastic
    Unit
    1
    Iso-Bar ECO rope cap 8779888005 1

    Specifications

    Length
    Orderidentifier
    Iso-Bar ECO rope cap
    Unit
    1
