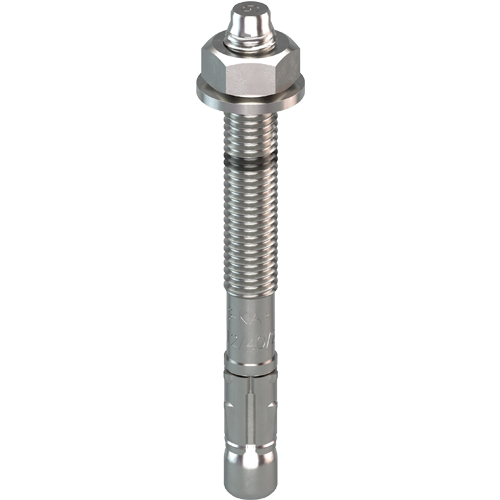

EJOT® BA-V Plus

Specification

  • Applications

    • For embedment in cracked and non-cracked concrete ≥ C20/25
    • Also suitable for natural stone
    • Dry indoor areas
    • For embedment of medium heavy to heavy fixings such as pillars, metal structures and wooden structures

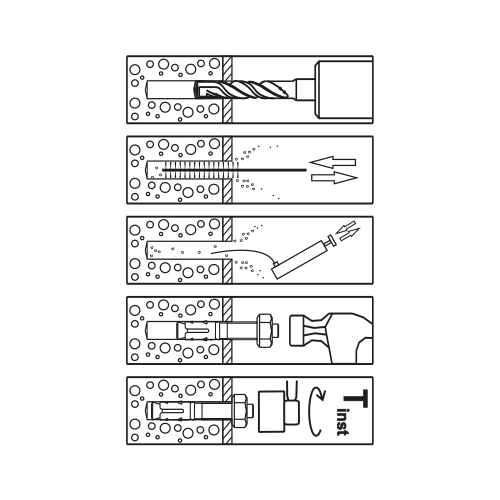

    • For pre-, push-through and distance installations
    • Seismic approval category C2 (M10-M16)

  • Properties

    • Galvanized zinc-plated steel
    • Approval for concrete, Option 1
    • Fire restistance classes F30, F60, F90, F120


    Note: Characteristic values apply to the compression strength of C20/25 concrete. Design load of an anchor for centric tension in cracked concrete.


  • Benefits

    • Completely new design
    • M10 and M12 with 2 different anchorage depths
      M10: 40 mm and 60 mm
      M12: 50 mm and 70 mm
    • Colored setting depth marking on the thread
    • Anchor length letter code marked on the bolt head
    • Installation also in thinner concrete than today with M8 and M10
      M8:   80 mm vs. 100 mm
      M10: 100 mm vs. 120 mm
    • 30 – 50% fewer turns for the assembly torque

Filter

Selected filters

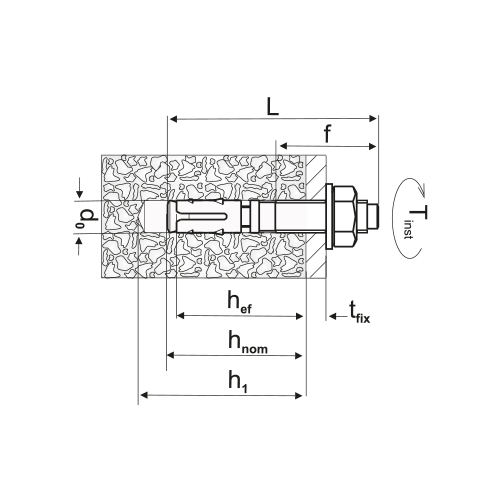

    Orderidentifier Article Number ø mm Length mm Clamping thickness

    tfix≤ mm

    Hole depth

    h1 ≥ mm

    Unit
    BA-V-PLUS-8/5/- 9650001308 8.0 57.0 5.0 47.0 50

    Specifications

    ø
    8.0
    Length
    57.0
    Clamping thickness

    tfix

    5.0
    Hole depth

    h1

    47.0
    Effective anchorage depth

    hef

    35.0
    Material
    Carbon Steel
    Orderidentifier
    BA-V-PLUS-8/5/-
    Unit
    50
    BA-V Plus 8/23/10 9650001310 8.0 75.0 23.0 47.0 50

    Specifications

    ø
    8.0
    Length
    75.0
    Clamping thickness

    tfix

    23.0
    Hole depth

    h1

    47.0
    Effective anchorage depth

    hef

    35.0
    Material
    Carbon Steel
    Orderidentifier
    BA-V Plus 8/23/10
    Unit
    50
    BA-V Plus 8/43/30 9650001312 8.0 95.0 43.0 47.0 50

    Specifications

    ø
    8.0
    Length
    95.0
    Clamping thickness

    tfix

    43.0
    Hole depth

    h1

    47.0
    Effective anchorage depth

    hef

    35.0
    Material
    Carbon Steel
    Orderidentifier
    BA-V Plus 8/43/30
    Unit
    50
    BA-V Plus 8/63/50 9650001314 8.0 115.0 63.0 47.0 40

    Specifications

    ø
    8.0
    Length
    115.0
    Clamping thickness

    tfix

    63.0
    Hole depth

    h1

    47.0
    Effective anchorage depth

    hef

    35.0
    Material
    Carbon Steel
    Orderidentifier
    BA-V Plus 8/63/50
    Unit
    40
    BA-V Plus 8/98/85 9650001316 8.0 150.0 98.0 47.0 40

    Specifications

    ø
    8.0
    Length
    150.0
    Clamping thickness

    tfix

    98.0
    Hole depth

    h1

    47.0
    Effective anchorage depth

    hef

    35.0
    Material
    Carbon Steel
    Orderidentifier
    BA-V Plus 8/98/85
    Unit
    40
    BA-V Plus 10/10/- 9650001323 10.0 72.0 10.0 55.0 40

    Specifications

    ø
    10.0
    Length
    72.0
    Clamping thickness

    tfix

    10.0
    Hole depth

    h1

    55.0
    Effective anchorage depth

    hef

    40.0
    Material
    Carbon Steel
    Orderidentifier
    BA-V Plus 10/10/-
    Unit
    40
    Ba-V Plus 10/30/10 9650001325 10.0 92.0 30.0 55.0 40

    Specifications

    ø
    10.0
    Length
    92.0
    Clamping thickness

    tfix

    30.0
    Hole depth

    h1

    55.0
    Effective anchorage depth

    hef

    40.0
    Material
    Carbon Steel
    Orderidentifier
    Ba-V Plus 10/30/10
    Unit
    40
    BA-V Plus 10/40/20 9650001326 10.0 102.0 40.0 55.0 25

    Specifications

    ø
    10.0
    Length
    102.0
    Clamping thickness

    tfix

    40.0
    Hole depth

    h1

    55.0
    Effective anchorage depth

    hef

    40.0
    Material
    Carbon Steel
    Orderidentifier
    BA-V Plus 10/40/20
    Unit
    25
    BA-V Plus 10/50/30 9650001327 10.0 112.0 50.0 55.0 25

    Specifications

    ø
    10.0
    Length
    112.0
    Clamping thickness

    tfix

    50.0
    Hole depth

    h1

    55.0
    Effective anchorage depth

    hef

    40.0
    Material
    Carbon Steel
    Orderidentifier
    BA-V Plus 10/50/30
    Unit
    25
    BA-V Plus 10/70/50 9650001329 10.0 132.0 70.0 55.0 25

    Specifications

    ø
    10.0
    Length
    132.0
    Clamping thickness

    tfix

    70.0
    Hole depth

    h1

    55.0
    Effective anchorage depth

    hef

    40.0
    Material
    Carbon Steel
    Orderidentifier
    BA-V Plus 10/70/50
    Unit
    25
