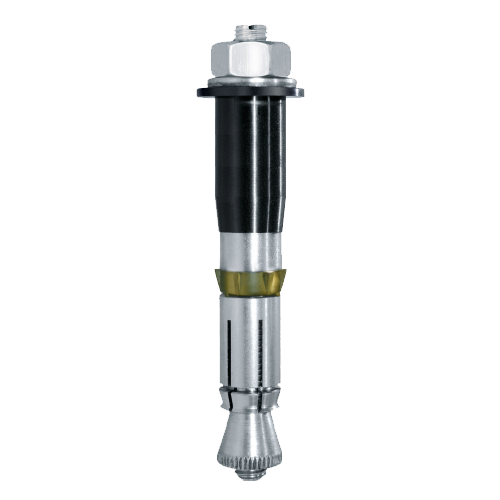

LIEBIG® step iron anchor

Specification

  • Applications

    • Step iron fastenings as per DIN 1211-3 / DIN 1212-3

    Base materials

    Approved for

    • Cracked concrete
    • Non-cracked concrete
  • Properties

    • Automatic self-undercutting, unique heavy-duty anchor for push through installation

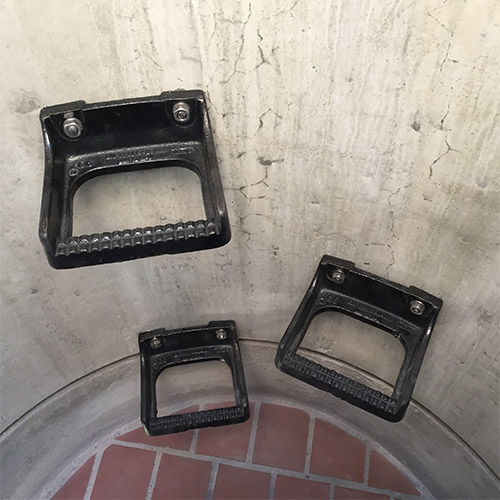

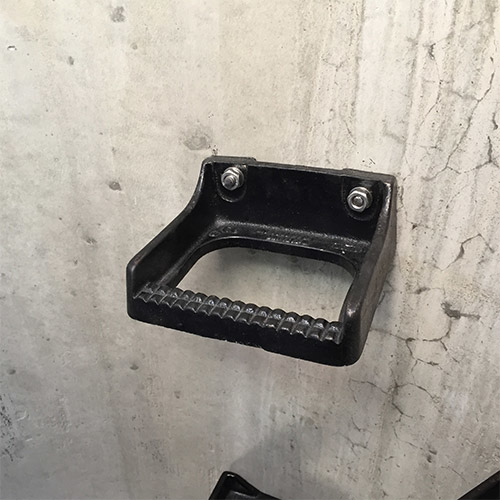

    • Used to attach step irons in wastewater revision chutes. The special plastic sleeves prevent bimetallic corrosion between the step iron and the anchor
    • Step iron anchors have the same characteristics and provide the same output as the self-undercutting SUPERPLUS anchors
    • Also easy to install in areas difficult to access
    • A4 for indoor and outdoor areas, as well as industrial applications
  • Technical specifications

    • A4 stainless steel

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Clamping thickness

    tfix≤ mm

    Hole depth

    h1 ≥ mm

    Unit
    BLS M8-14/40 SD A4 9650814040 14.0 95.0 25.0 60.0 25

    Specifications

    ø
    14.0
    Length
    95.0
    Clamping thickness

    tfix

    25.0
    Hole depth

    h1

    60.0
    Embedment
    40.0
    Material
    Stainless Steel
    Orderidentifier
    BLS M8-14/40 SD A4
    Unit
    25
    BLS M8-14/60 SA A4N 9650040060 14.0 115.0 25.0 80.0 25

    Specifications

    ø
    14.0
    Length
    115.0
    Clamping thickness

    tfix

    25.0
    Hole depth

    h1

    80.0
    Embedment
    60.0
    Material
    Stainless Steel
    Orderidentifier
    BLS M8-14/60 SA A4N
    Unit
    25
