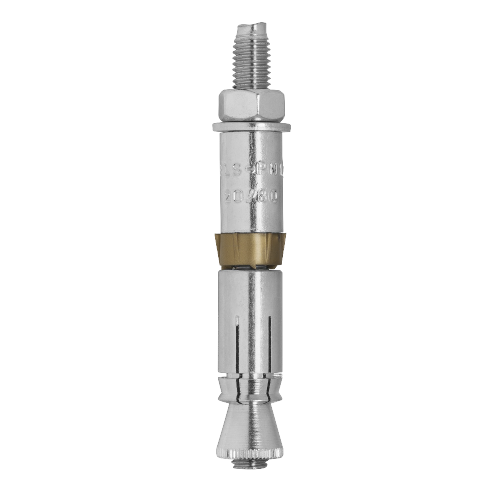

LIEBIG® SUPERPLUS BLS-P

Specification

  • Applications

    • Lifts
    • Power Plants (e. g. nuclear power)
    • Saftey barriers and guide rails
    • Heavy-duty pipeline systems
    • Facade attachments on slim components
    • Tunnel ventilation equipment
    • Cranes and crane runways
    • Machinery
    • Base plates
  • Properties

    • Self-undercutting anchor with threaded bolt, nut and washer
    • Galvanized zinc-plated steel
    • Unique, fully self-undercutting, unique heavy-duty anchor for push through installation
    • Simplest, quickest and safest solution on the market
    • Cost-effective: No special drills, undercutting or setting tools required
    • Minimal expansion forces allow for small center and edge distances
    • For dry indoor use
  • Base materials

    Approved for

    • Cracked concrete
    • Non-cracked concrete

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Clamping thickness

    tfix≤ mm

    Hole depth

    h1 ≥ mm

    Embedment mm Unit
    BLS-P M12-20/80/15 9650180015 20.0 135.0 15.0 105.0 80.0 25

    Specifications

    ø
    20.0
    Length
    135.0
    Clamping thickness

    tfix

    15.0
    Hole depth

    h1

    105.0
    Embedment
    80.0
    Clamp thickness
    15.0
    Material
    Carbon Steel
    Orderidentifier
    BLS-P M12-20/80/15
    Unit
    25
    show more
    BLS-P M12-20/150/30 9651150030 20.0 220.0 30.0 175.0 150.0 10

    Specifications

    ø
    20.0
    Length
    220.0
    Clamping thickness

    tfix

    30.0
    Hole depth

    h1

    175.0
    Embedment
    150.0
    Clamp thickness
    30.0
    Material
    Carbon Steel
    Orderidentifier
    BLS-P M12-20/150/30
    Unit
    10
    show more
    BLS-P M16-25/150/40 9655150040 25.0 240.0 40.0 185.0 150.0 5

    Specifications

    ø
    25.0
    Length
    240.0
    Clamping thickness

    tfix

    40.0
    Hole depth

    h1

    185.0
    Embedment
    150.0
    Clamp thickness
    Material
    Carbon Steel
    Orderidentifier
    BLS-P M16-25/150/40
    Unit
    5
    show more
    BLS-P M16-25/200/40 9655210040 25.0 290.0 40.0 235.0 200.0 5

    Specifications

    ø
    25.0
    Length
    290.0
    Clamping thickness

    tfix

    40.0
    Hole depth

    h1

    235.0
    Embedment
    200.0
    Clamp thickness
    40.0
    Material
    Carbon Steel
    Orderidentifier
    BLS-P M16-25/200/40
    Unit
    5
    show more
