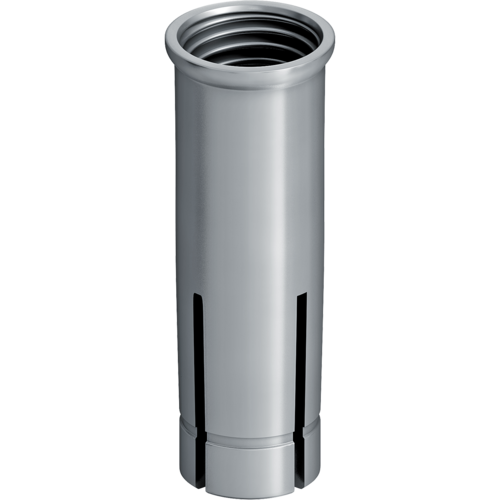

Drop-in Anchor LAL

Specification

  • Applications

    • For use as single fastener according to ETAG 001; Part 4 in non-cracked concrete (see ETA-13/0442)
    • For use as a multiple fastener in non-supporting systems in cracked and non-cracked concrete, e.g. suspension systems, pipelines, air ducts, sprinkler systems, cable racks, machines, supports and ceiling beams (see ETA 13/0441)
    • Also suitable for reinforced concrete hollow floor, natural stone and brick
    • Suitable for dry indoor areas
  • Properties

    • With collar, steel, galvanized zinc-plated
    • Internal thread for metric screws and rods
    • The suitable bolt length is 1-1.5 x nominal anchor length + component thickness
    • The smallest required drill hole depth
  • Technical specifications

    Characteristic values  LAL+6/ LAL+8/ LAL+10/ LAL+12

    • Inside diameter of thread: M6/ M8 /M10/ M12
    • Nominal drill diameter d0: 8mm/ 10 mm/ 12 mm/ 15mm
    • Effective Embedment depth hef: 25mm/30mm/ 40mm/ 50mm
    • Max. installation depth Ls,max: 11 mm/ 13 mm/ 16 mm/ 23 mm
    • Min. installation depth Ls,min:6 mm/ 8 mm/ 10 mm/ 12 mm
    • Through hole diameter in the attached part df: 7 mm/  9 mm/ 12 mm/ 14 mm
    • Maximum Installation torque Tinst max: 4 Nm/ 8 Nm/ 15 Nm/ 35 Nm

    Performance data - LAL+6/ LAL+8/ LAL+10/ LAL+12

    • Non-cracked concrete C20/25 NRec: 1.9 kN/ 3.6 kN/ 4.8 kN/ 6.3 kN
    • Non-cracked concrete C20/25 NRec: 1.7 kN/ 3.1 kN/ 4.5 kN/ 7.3 kN
