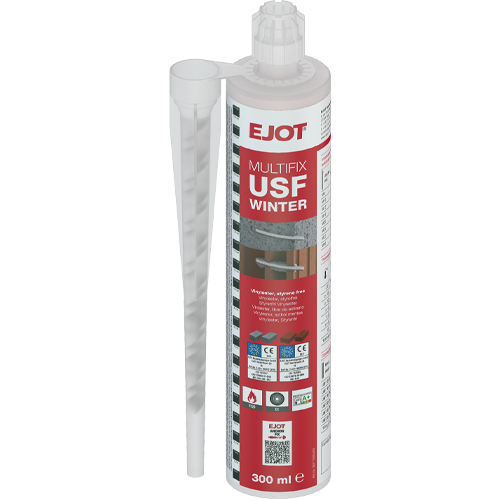

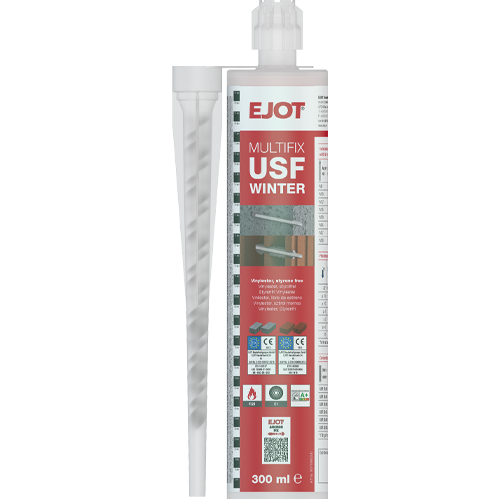

Mortar cartridge Multifix USF winter

Specification

  • Applications

    • For installation in cracked concrete (option 1) and non-cracked concrete (option 7) (ETA-16/0107)
    • For installation in masonry (ETA-16/0089)
    • For installation in natural stone (without approval)
    • Approved for anchor rods M8, M10, M12, M16, M20, M24, M27, M30

    Notice

    Please observe the corresponding approvals during planning and processing.

    The storage temperature must not permanently exceed 25 °C! Please store upright!

  • Properties

    • Vinyl resin, styrene-free
  • Benefits

    • Cartridge temperature may conform to the low outside temperature
    • Shorter curing times at low temperatures
    • Processing with common applicator gun possible
    • Can be used in wet concrete and water-filled drill holes
    • Delivery including mixing nozzle
Orderidentifier Article Number Contents ml Amount mixing nozzle Unit
Mortar cartridge USF 300 ml winter 9571000300 300.0 2 1

Specifications

Contents
300.0
Amount mixing nozzle
2
Orderidentifier
Mortar cartridge USF 300 ml winter
Unit
1

Multifix Calculator

Calculate the mortar cartridges required for your project with this calculation tool. It will help you to reduce waste and make your installation more cost-effective.

  • Select thread diameter from the list on the far left.
  • Select the number of holes to fill by entering them in the text box above the illustration or alternatively use the plus and minus buttons.
  • Select the drilling depth using the plus and minus buttons in the illustration.
  • Done! The number of mortar cartridges required is now displayed.
