Iso-Corner kit T-FAST®

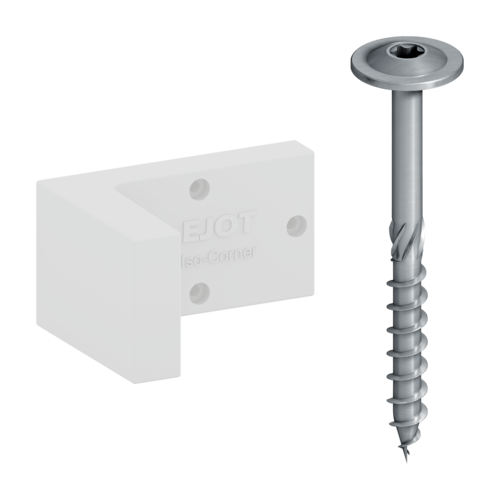

T-Fast-Kit-Iso-Corner-500x500-2

Specification

  • Applications

    • For the approved fastening of the Iso-Corner on timber substrates
    • Consisting of 3 pieces T-FAST® woodscrew JW2-STS-8

  • Properties

    • Carbon steel with zinc-plated surface
    • Plate increases the pulling power
    • Partial thread with milling ribs at the transition to the non-threaded part reduces the installation torque and simplifies the installation process
    • Optimised thread geometry for extremely fast processing
    • Aggressive tip attack ensures a firm grip in the timber

  • Technical specifications

    • Diameter: 8.0 mm
    • Head diameter: 20 mm
    • Drive: hexalobular TX40
    • Installation depth: 40 mm



    Note: Please note the European Technical Approval ETA-18/0812 in your planning and in the processing of the products. Further information about parameters and loads can be found in the approval.

Please note: ETICS products are only available from system suppliers.

Filter

Selected filters

    Orderidentifier Article Number Unit
    Iso-Corner kit T-Fast 80 8778000080 1

    Specifications

    Orderidentifier
    Iso-Corner kit T-Fast 80
    Unit
    1
    Iso-Corner kit T-Fast 100 8778000100 1

    Specifications

    Orderidentifier
    Iso-Corner kit T-Fast 100
    Unit
    1
