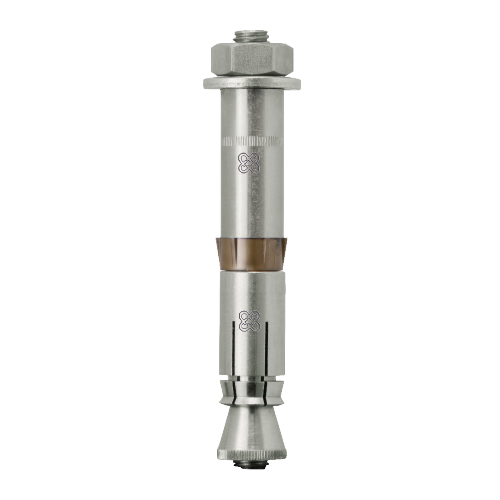

LIEBIG® SUPERPLUS BLS A4

Specification

  • Applications

    • Power plants
    • Guard rails
    • Machinery
    • Base plates
    • For dynamic and seismic loads
    • Small edge and center distances

    Base materials
    ETA approved for

    • cracked concrete
    • non-cracked concrete
  • Properties

    • Self-undercutting anchor with threaded bolt, nut and washer
    • A4-80 stainless steel
    • Automatic self-undercutting, unique-heavy duty anchor for push through installation
    • simplest, quickest and safest solution on the market
    • Cost-effective: No special drills, undercutting or setting tools required
    • Minimal expansion forces allow for small center and edge distances
    • For indoor and outdoor areas, as well as industrial applications
  • Technical specifications

    • Stainless steel A4
    • Size range M6 to M16
    • Hex nut

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Clamping thickness

    tfix≤ mm

    Hole depth

    h1 ≥ mm

    Unit
    BLS M8-14/80/25 A4 9654080254 14.0 130.0 25.0 100.0 25

    Specifications

    ø
    14.0
    Length
    130.0
    Clamping thickness

    tfix

    25.0
    Hole depth

    h1

    100.0
    Embedment
    80.0
    Clamp thickness
    25.0
    Material
    Stainless Steel
    Orderidentifier
    BLS M8-14/80/25 A4
    Unit
    25
    BLS M8-14/40/15 A4 9654404015 14.0 15.0 25

    Specifications

    ø
    14.0
    Length
    Clamping thickness

    tfix

    15.0
    Hole depth

    h1

    Embedment
    Clamp thickness
    15.0
    Material
    Stainless Steel
    Orderidentifier
    BLS M8-14/40/15 A4
    Unit
    25
    BLS M12-20/80/15 A4 9650080154 20.0 130.0 15.0 105.0 10

    Specifications

    ø
    20.0
    Length
    130.0
    Clamping thickness

    tfix

    15.0
    Hole depth

    h1

    105.0
    Embedment
    80.0
    Clamp thickness
    15.0
    Material
    Stainless Steel
    Orderidentifier
    BLS M12-20/80/15 A4
    Unit
    10
    BLS M12-20/80/30 A4 9650080304 20.0 30.0 10

    Specifications

    ø
    20.0
    Length
    Clamping thickness

    tfix

    30.0
    Hole depth

    h1

    Embedment
    Clamp thickness
    30.0
    Material
    Stainless Steel
    Orderidentifier
    BLS M12-20/80/30 A4
    Unit
    10
    BLS M16-25/150/30 A4 9655150304 25.0 220.0 30.0 185.0 5

    Specifications

    ø
    25.0
    Length
    220.0
    Clamping thickness

    tfix

    30.0
    Hole depth

    h1

    185.0
    Embedment
    150.0
    Clamp thickness
    30.0
    Material
    Stainless Steel
    Orderidentifier
    BLS M16-25/150/30 A4
    Unit
    5
