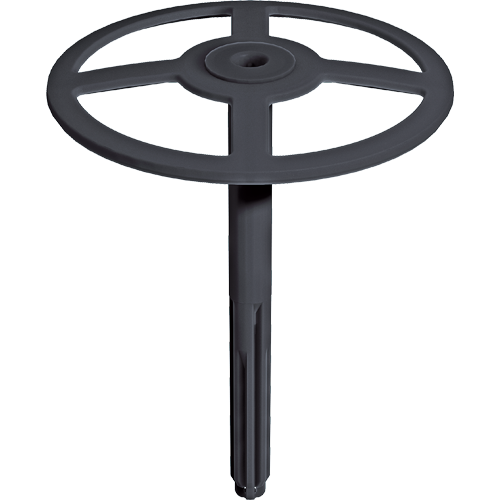

EJOT® insulation support anchor DH (individual components)

Specification

  • Applications

    • For fixing insulating material in the rear ventilated facade to all substrates

    Benefits

    • Prevents "quilt effect" (identations in the insulation) due to retrofitting of the washer
    • Prevents gaping of the joints between the individual insulating panels at the joining edges
    • Packing and handling volume is reduced by over 60% compared to one-part insulation support anchors
    • Installation depth limiter guarantees defined installation, independent of the substrate
    • Process reliable installation even with thick insulation boards

    Notice

    For the installation of two-ply insulation, additional stress plates are required. The practicability depends on the respective insulation properties and needs to be tested on site. Rotary hole drilling is obligatory in aerated concrete and perforated brick masonry.

  • Properties

    • Requirement: 5 pcs. per m2
    • Easy installation with no additional expansion element
    • Parts can be positioned freely on the shaft
    • All-purpose for all building materials
  • Technical specifications

    Characteristic values

    • Plate diameter: 90 mm
    • Shaft diameter: 8 mm
    • Drill bit diameter: 8 mm
    • Drill hole depth ≥ t: 40 mm
    • Embedment depth ≥ hv: 30 mm
    • Point thermal transmittance χ: 0.0001 W/K
    • Carrying capacity (pull over washer): 0.2 kN
Orderidentifier Article Number Material Anchor length mm Unit
DH-40 (one-part) 8551906009 Plastic 60.0 300

Specifications

Material
Plastic
Anchor length
60.0
Orderidentifier
DH-40 (one-part)
Unit
300
