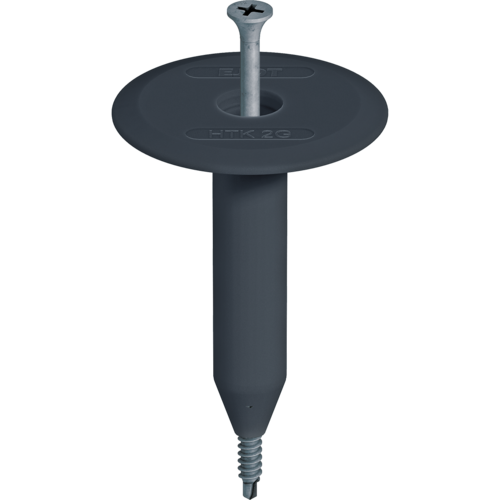

EJOTĀ® HTK-2G-TKR loose, pre-assembled

Specification

  • Applications

    • To fix roofing membranes and insulating material to substructures made of sheet steel ≥ 0.70 mm ≤ 1.5 mm, timber or wood-based material
    • For new buildings
    • For the installation with ECOSET HTK installation tool up to 280 mm total panel thickness
    • For special requirements of resistance to imposed loads
    • To reduce thermal bridges
  • Properties

    • Stress plate: high-grade plastic material
    • DABO® screw TKR = case-hardened steel, Climadur*-coated > Telescope design for resistance to imposed loads
    • Combinations for total panel thicknesses up to 605 mm possible
    • Processing in an upright position possible with the bit extension with spring pin or with the ECOSET HTK installation tool
  • Note

    Upon request also available with VHT-R and VHT-E

    *Climadur
    High-grade coating to improve the corrosion protection (15 Kesternich cycles, DIN 50018, 1997)

Filter

Selected filters

    Orderidentifier Article Number Recess Depth mm Insulation thickness mm Screw length mm Unit
    HTK-2G-TKR-60-35/50-loose, pre-assembled 3703505024 35.0 60.0 50.0 100

    Specifications

    Recess Depth
    35.0
    Insulation thickness
    60.0
    Screw length
    50.0
    Orderidentifier
    HTK-2G-TKR-60-35/50-loose, pre-assembled
    Unit
    100
    HTK-2G-TKR-80-55/50-loose, pre-assembled 3705505024 55.0 80.0 50.0 100

    Specifications

    Recess Depth
    55.0
    Insulation thickness
    80.0
    Screw length
    50.0
    Orderidentifier
    HTK-2G-TKR-80-55/50-loose, pre-assembled
    Unit
    100
    HTK-2G-TKR-100-55/70-loose, pre-assembled 3705507024 55.0 100.0 70.0 100

    Specifications

    Recess Depth
    55.0
    Insulation thickness
    100.0
    Screw length
    70.0
    Orderidentifier
    HTK-2G-TKR-100-55/70-loose, pre-assembled
    Unit
    100
    HTK-2G-TKR-120-95/50-loose, pre-assembled 3709505024 95.0 120.0 50.0 100

    Specifications

    Recess Depth
    95.0
    Insulation thickness
    120.0
    Screw length
    50.0
    Orderidentifier
    HTK-2G-TKR-120-95/50-loose, pre-assembled
    Unit
    100
    HTK-2G-TKR-140-95/70-loose, pre-assembled 3709507024 95.0 140.0 70.0 100

    Specifications

    Recess Depth
    95.0
    Insulation thickness
    140.0
    Screw length
    70.0
    Orderidentifier
    HTK-2G-TKR-140-95/70-loose, pre-assembled
    Unit
    100
    HTK-2G-TKR-160-115/70-loose, pre-assembled 3711507024 115.0 160.0 70.0 100

    Specifications

    Recess Depth
    115.0
    Insulation thickness
    160.0
    Screw length
    70.0
    Orderidentifier
    HTK-2G-TKR-160-115/70-loose, pre-assembled
    Unit
    100
    HTK-2G-TKR-180-145/60-loose, pre-assembled 3714506024 145.0 180.0 60.0 100

    Specifications

    Recess Depth
    145.0
    Insulation thickness
    180.0
    Screw length
    60.0
    Orderidentifier
    HTK-2G-TKR-180-145/60-loose, pre-assembled
    Unit
    100
    HTK-2G-TKR-200-145/80-loose, pre-assembled 3714508024 145.0 200.0 80.0 100

    Specifications

    Recess Depth
    145.0
    Insulation thickness
    200.0
    Screw length
    80.0
    Orderidentifier
    HTK-2G-TKR-200-145/80-loose, pre-assembled
    Unit
    100
    HTK-2G-TKR-220-145/100-loose, pre-assembled 3714510024 145.0 220.0 100.0 100

    Specifications

    Recess Depth
    145.0
    Insulation thickness
    220.0
    Screw length
    100.0
    Orderidentifier
    HTK-2G-TKR-220-145/100-loose, pre-assembled
    Unit
    100
    HTK-2G-TKR-240-145/120-loose, pre-assembled 3714512024 145.0 240.0 120.0 100

    Specifications

    Recess Depth
    145.0
    Insulation thickness
    240.0
    Screw length
    120.0
    Orderidentifier
    HTK-2G-TKR-240-145/120-loose, pre-assembled
    Unit
    100
