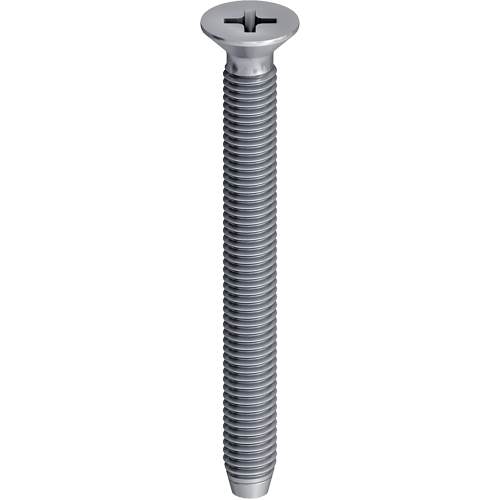

EJOT® Metric screw

Specification

  • Applications

    • Fastening window handles
  • Properties

    • With dog point
    • Quality grade 4.8
  • Technical specifications

    • Head diameter: 9.0 mm
    • Drive: Cross recess PH 2
    • Thread type: metric

Filter

Selected filters

    Orderidentifier Article Number Length mm Material Drive Unit
    Metric screw M5x40 2237540401 40.0 Zinc plated, blue passivated Phillips PH 2 500

    Specifications

    Length
    40.0
    Material
    Zinc plated, blue passivated
    Drive
    Phillips PH 2
    Orderidentifier
    Metric screw M5x40
    Unit
    500
    Metric screw M5x48 2237545401 45.0 Zinc plated, blue passivated Phillips PH 2 250

    Specifications

    Length
    45.0
    Material
    Zinc plated, blue passivated
    Drive
    Phillips PH 2
    Orderidentifier
    Metric screw M5x48
    Unit
    250
