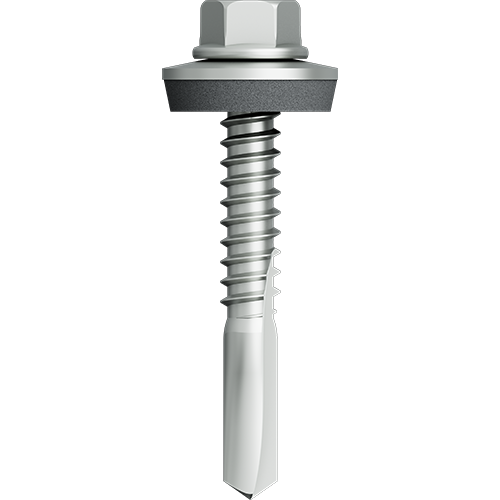

EJOT® self-drilling screw JT6-12-5.5


Specification

  • Applications

    • Fastening profiled steel and aluminium sheets and sandwich panels to 4-10 mm steel substructure
    • Fastening aluminium profiled sheets to 4-12 mm aluminium substructure

  • Properties

    • A4 stainless steel with hardened drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 1.0 + 12.0 mm / 2.0 + 10.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1300 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Fastener material Unit
    JT6-12-5,5x58 E16 3595581991 5.5 Stainless Steel

    Specifications

    ø
    5.5
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-12-5,5x58 E16
    Unit
    JT6-12-5,5x58 E19 3595582991 5.5 Stainless Steel

    Specifications

    ø
    5.5
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-12-5,5x58 E19
    Unit
    JT6-12-5,5x58 E22 3595583991 5.5 Stainless Steel

    Specifications

    ø
    5.5
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-12-5,5x58 E22
    Unit
    JT6-12-5,5x40 E19 3595682991 5.5 Stainless Steel

    Specifications

    ø
    5.5
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-12-5,5x40 E19
    Unit
    JT6-12-5,5x78 E16 3595781991 5.5 Stainless Steel

    Specifications

    ø
    5.5
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-12-5,5x78 E16
    Unit
    JT6-12-5,5x78 E19 3595782991 5.5 Stainless Steel

    Specifications

    ø
    5.5
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-12-5,5x78 E19
    Unit
    JT6-12-5,5x78 E22 3595783991 5.5 Stainless Steel

    Specifications

    ø
    5.5
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-12-5,5x78 E22
    Unit
    JT6-12-5,5x98 E16 3595881991 5.5 Stainless Steel

    Specifications

    ø
    5.5
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-12-5,5x98 E16
    Unit
    JT6-12-5,5x98 E19 3595882991 5.5 Stainless Steel

    Specifications

    ø
    5.5
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-12-5,5x98 E19
    Unit
    JT6-12-5,5x98 E22 3595883991 5.5 Stainless Steel

    Specifications

    ø
    5.5
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-12-5,5x98 E22
    Unit
