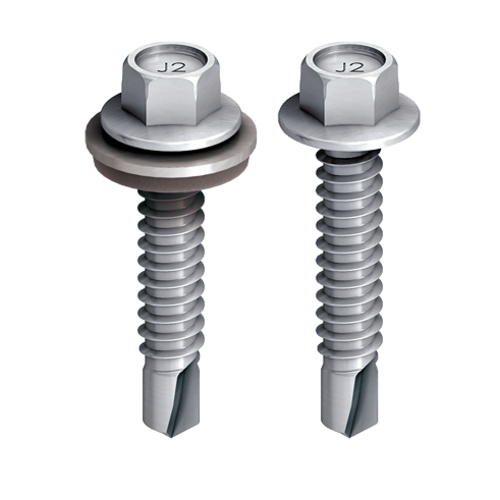

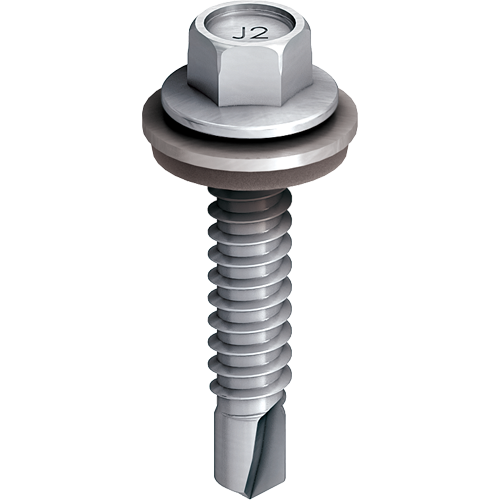

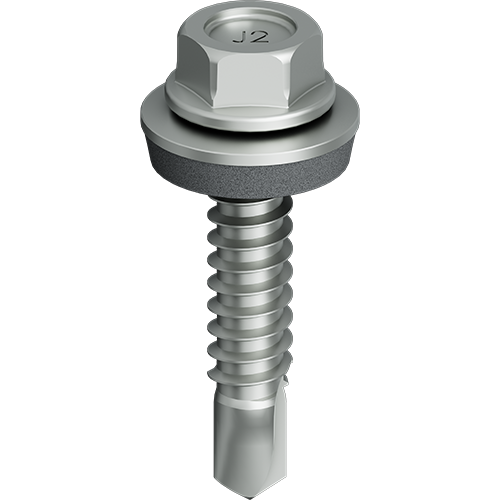

EJOT® self-drilling screw JT2-6-6.3

Specification

  • Applications

    • Fastening profiled steel sheets to 2–5 mm steel substructure
  • Properties

    • Case-hardened steel, zinc-plated
    • Steel sealing washer, zinc-plated
    • Pre-assembled sealing washer
  • Technical specifications

    • Diameter: 6.3 mm
    • Drilling capacity tI + tII: 1.5 + 5.0 mm
    • Drive: Hexagon AF 3/8"
    • Installation rotation speed: max. 1500 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Fastener material Unit
    JT2-6-6.3x22-V16 3574321634 6.3 16 22.0 Carbon Steel 500

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    22.0
    Fastener material
    Carbon Steel
    Clamp thickness
    0.0 - 7.0
    Orderidentifier
    JT2-6-6.3x22-V16
    Unit
    500
    JT2-6-6.3x25-V16 PU100 6574421634 6.3 16 25.0 Carbon Steel 100

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    25.0
    Fastener material
    Carbon Steel
    Clamp thickness
    0.0 - 10.0
    Orderidentifier
    JT2-6-6.3x25-V16 PU100
    Unit
    100
