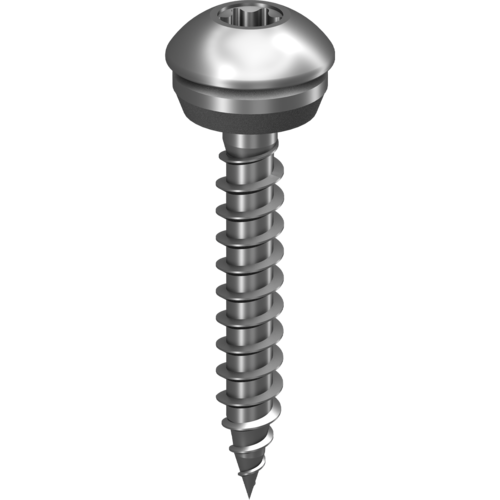

EJOFAST® self-drilling screw JF3-FR-Plus-4.9

JF3-Plus-FR-4,9x35-E11_1200x1200

Specification

  • Applications

    • Fastening profiled steel or aluminium sheets to timber substructures

  • Properties

    • A2 stainless steel with hardened steel point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • Reduced swarf fastening
    • Assembly without pre-drilling
    • Non-skid application
    • High load-bearing capacity
    • With truss head

  • Technical specifications

    • Diameter: 4.9 mm
    • Drill capacity tI + tII: 0.8 mm
    • Drive: Hexalobular drive T25
    • Installation rotation speed: max. 1500 rpm

Filter

Selected filters

    Orderidentifier Article Number Ø Sealing Washer mm Length mm Unit
    JF3-FR-plus-4,9x35 E11 3593692329 11 35.0 500

    Specifications

    Ø Sealing Washer mm
    11
    Length
    35.0
    Orderidentifier
    JF3-FR-plus-4,9x35 E11
    Unit
    500
    JF3-FR-plus-4,9x35 E11 VE100 6593692329 11 35.0 100

    Specifications

    Ø Sealing Washer mm
    11
    Length
    35.0
    Orderidentifier
    JF3-FR-plus-4,9x35 E11 VE100
    Unit
    100
