EJOT® coupling screw type MS

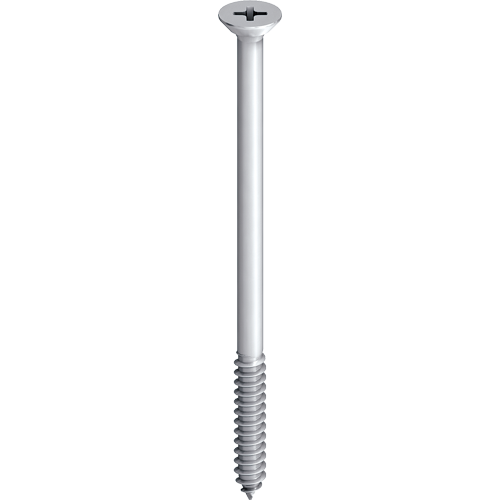

Kopplungsschraube_MS-ST_4,8x80_25

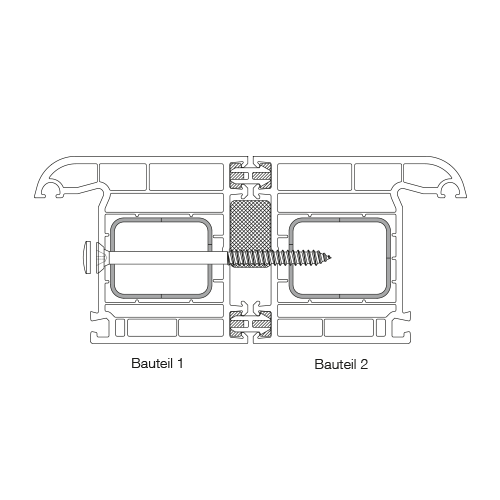

Anwendung-Kopplungsschraube-Typ-MS

Specification

  • Applications

    • Coupling of window and door profiles with reinforced steel

  • Properties

    • Case-hardened steel

  • Technical specifications

    • Head diameter: 9.5 mm
    • Drive: cross recess PH 2
    • Thread type: ST thread
Order information: Including white RAL 9010 push-on caps

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Material Drive Unit
    Coupling screw MS 4.8x55 2200555601 4.8 55.0 Zinc plated Phillips PH 2 100

    Specifications

    ø
    4.8
    Length
    55.0
    Material
    Zinc plated
    Drive
    Phillips PH 2
    Orderidentifier
    Coupling screw MS 4.8x55
    Unit
    100
    Coupling screw MS 4.8x65 2200565601 4.8 65.0 Zinc plated Phillips PH 2 100

    Specifications

    ø
    4.8
    Length
    65.0
    Material
    Zinc plated
    Drive
    Phillips PH 2
    Orderidentifier
    Coupling screw MS 4.8x65
    Unit
    100
    Coupling screw MS 4.8x80 2200580601 4.8 80.0 Zinc plated Phillips PH 2 100

    Specifications

    ø
    4.8
    Length
    80.0
    Material
    Zinc plated
    Drive
    Phillips PH 2
    Orderidentifier
    Coupling screw MS 4.8x80
    Unit
    100
    Coupling screw MS 4.8x95 2200595601 4.8 95.0 Zinc plated Phillips PH 2 100

    Specifications

    ø
    4.8
    Length
    95.0
    Material
    Zinc plated
    Drive
    Phillips PH 2
    Orderidentifier
    Coupling screw MS 4.8x95
    Unit
    100
